Superior Performance: Exceeds the requirements of ISO/IEC 11801 and ANSI/TIA 568-C.2 standards.
Standard 19-inch Rack Mount: Ensures mechanical strength and compatibility.
Tool-free Modular Design: Facilitates easy installation, saving time, and meeting diverse user needs.
Gold-Plated Pins: Enhances product performance, prevents oxidation, and extends service life.
Protective Covers: Ensures secure wire termination, offer dust protection, and provide cable strain relief.
Optimized Shielding: Blocks electromagnetic interference (EMI), ensures stable transmission.

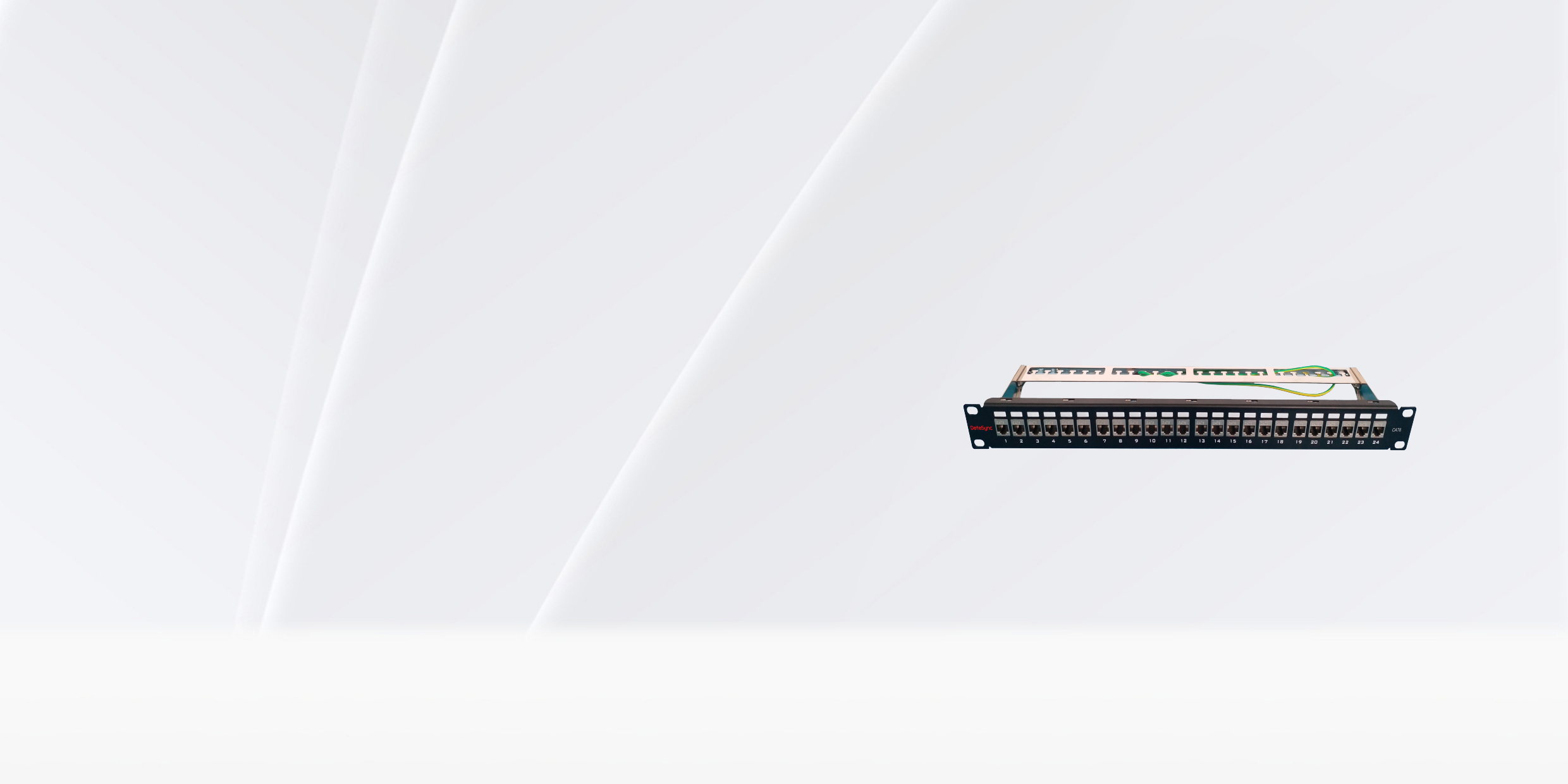

| Product name | Patch panel |
Category | 6 |
Type | Shielded |
Dimension (W×D×H) | 482.6×97×44.5 mm |
Frame structure | Powder-coated SPCC, Black |
Ports | 24 |
Dielectric strength | DC: 1000V (AC 750V) for 1 minute |
Rated current | 1.5 Amp |
Insulation resistance | ≥200 mΩ |
Contact resistance | ≤ 20 mΩ |
DC Resistance | ≤300mΩ |
Connecting Reactance | ≤20mΩ |
Plug insertion life | ≥ 1000 |
IDC insertion life span | ≥ 250 |
Wire gauge range for IDC connectors | 22-26 AWG |
Insertion power | ≤ 20N |
Plugging out power | ≥ 20N |
Working temperature | -10~60℃ |
